Central Processing Unit (CPU): The Core of Modern Computing

Central Processing Unit (CPU): The Core of Modern Computing
Central Processing Unit (CPU) Anatomy.png

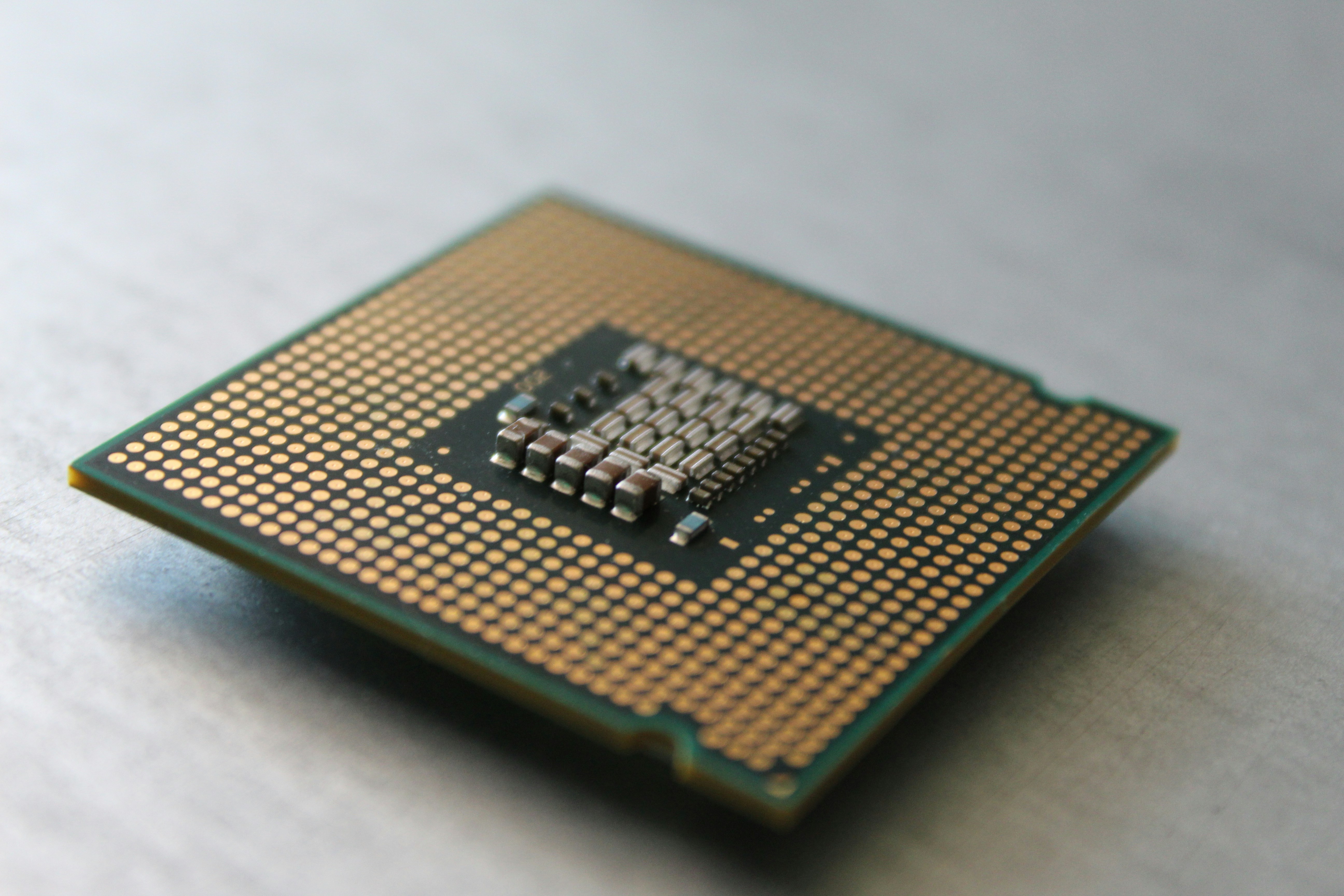

A high-resolution image of a CPU chip, showcasing its intricate circuitry and components | Source
The Central Processing Unit (CPU) is often called the ‘brain’ of a computer. It is the core component of any computing device, responsible for interpreting and executing instructions from software and coordinating with hardware components. Much like how the brain processes and coordinates our body’s functions, the CPU handles various tasks: performing calculations, running applications, and directing multiple components to work in harmony.
Without the CPU, a computer or smartphone wouldn’t be able to run programs, process data, or perform even the most basic tasks.
Let’s explore the inner workings of the CPU, its key components, how it operates, and why it plays such a vital role in modern devices.
Definition of CPU
The central processing unit (CPU) is the primary component of a computer. It interprets and executes instructions from software, manages program execution, processes data, and coordinates the activities of other hardware components.
The CPU performs fundamental tasks such as arithmetic, logic, control, and input/output operations, facilitating the functioning of the entire system. It operates through a series of cycles, retrieving and processing instructions to produce the desired output. The CPU's performance is critical to the computer's overall speed and efficiency.
Anatomy of the CPU
It's essential to look at each core component to understand how a Central Processing Unit (CPU) works. Each part of the CPU plays a distinct role in performing tasks, and together, they ensure the efficient functioning of your device. Let’s take a closer look at the primary components that make up the CPU and how they interact to execute instructions and process data.
- Control Unit (CU): The Control Unit is the "orchestrator" of the CPU. It manages instruction processing and coordinates the flow of data within the CPU and between other computer components. The CU fetches instructions from memory, decodes them, and converts them into micro-operations that the CPU can execute. It also directs other components, like the ALU and registers, to perform specific tasks. The Control Unit ensures that all components sync to process tasks correctly.
- Registers: Registers are small, high-speed storage locations within the CPU that temporarily hold data, instructions, and memory addresses. They provide much faster access than other forms of memory like RAM or cache. This makes them crucial for efficient processing. There are several types of registers in a CPU, including:
General-purpose registers hold operational data used by the ALU.
Instruction registers store the current instruction being executed.
Program counters keep track of the next instruction to be fetched.
- Arithmetic Logic Unit (ALU): The ALU is responsible for performing basic arithmetic operations (addition, subtraction, multiplication, and division) and logical operations (AND, OR, and NOT). It works closely with the registers, receiving data from them and processing it based on the instructions from the Control Unit. The ALU then produces a result, which is sent back to registers or memory for further use. Its ability to quickly perform operations is central to the CPU’s speed and efficiency.
Central Processing Unit (CPU) Anatomy
Central Processing Unit (CPU) Anatomy
Working of the CPU
The CPU performs tasks through a sequence of operations known as the fetch-decode-execute cycle. This cycle happens continuously as long as the computer is running. Let's break it down step by step:
- Fetch: The first step in the CPU's work cycle is to fetch an instruction from memory. The program counter (PC), stored in a register, keeps track of the memory address of the next instruction to be executed. The control unit (CU) directs the CPU to fetch the instruction from the specified location in the system’s memory, including RAM, cache, or ROM.
- Decode: Once the instruction is fetched, the next step is to decode it. The instruction is passed to the control unit, which interprets it, breaks it down into specific micro-operations, and identifies which action needs to be performed. The CU decodes the instruction and sends signals to the appropriate CPU components, such as the ALU or registers, to prepare them for the next phase.
- Execute: After decoding, the execute step begins. The CPU performs the required operation based on the decoded instruction. This could involve:
Performing arithmetic or logical calculations using the ALU.
Moving data between registers.
Writing results in memory.
Accessing input/output devices for data retrieval.
The execution step may involve several sub-steps, depending on the complexity of the instruction.
- Store (Write-back): Once the execution is complete, the result may need to be stored in memory or returned to a register for future operations. The store phase returns the result to memory, ensuring that the CPU's calculations or data manipulations are preserved for future use.
Fetch Decode Execute Cycle.png
Fetch Decode Execute Cycle
Features of CPU
Several key features influence the performance of a CPU. These features work together to determine how efficiently the CPU executes tasks. Let’s discuss the main features that impact CPU performance:
- Clock Speed: Measured in GHz, the clock speed determines how many cycles the CPU can complete per second. Although a higher clock speed typically leads to faster instruction processing, the relationship is not strictly proportional, as other factors, such as architecture and workload optimization, also influence performance.
- Core Count: Multi-core processors contain two or more cores, each capable of executing instructions independently. Common configurations include dual-core, quad-core, and higher, with more cores allowing better multitasking and performance under heavy workloads.
- Threading: Hyper-threading and similar technologies allow a single core to manage multiple threads, effectively increasing the number of tasks a CPU can handle concurrently. For instance, a quad-core CPU with hyper-threading can process eight threads simultaneously.
- Cache Memory: CPUs include multiple levels of cache to store frequently used data and instructions closer to the processor. Although L1, L2, and L3 are the most commonly used cache levels in modern CPUs, certain high-end processors may include additional cache levels.
L1 Cache: Closest to the core, it offers the fastest access but is limited in size, typically ranging from 64 KB to 512 KB.
L2 Cache: Slightly larger and slower than L1, it provides additional storage for instructions and data.
L3 Cache: Shared across cores, L3 offers a larger capacity but slower access than L1 and L2.
Together, these features ensure efficient instruction processing, balancing speed, multitasking, and energy efficiency.
CPU vs. GPU vs. TPU
Understanding the differences between CPUs, GPUs, and TPUs helps choose the right processor for specific tasks. While all three are essential for computing, their design and purpose vary significantly. Here's a detailed comparison:
Feature | CPU (Central Processing Unit) | GPU (Graphics Processing Unit) | TPU (Tensor Processing Unit) |
Purpose | General purpose computing | Graphics rendering and high-performance computing | Machine learning and AI workloads. |
Design | Fewer, more powerful cores (e.g., dual-core, quad-core). | More cores than CPUs, but less powerful than CPU cores | Matrix-based units for tensor operations. |
Processing | Designed for serial instruction processing | Designed for parallel instruction processing | Optimized for matrix and vector calculations. |
Workload Type | Low-latency, versatile tasks | High-throughput for graphics and AI tasks | High throughput for large batch AI computations |
Memory | Large capacity with high flexibility | Limited memory optimized for specific tasks | Large bandwidth for neural network models |
Performance | Balances performance and multitasking | High-speed data throughput | Extremely fast for deep learning and AI models. |
Energy Efficiency | Moderate energy efficiency | Consumes more power than CPUs | Highly energy-efficient for machine learning |
Applications | Operating systems, everyday computing tasks | Gaming, video editing, AI model training | TensorFlow-based projects, advanced AI |
Manufacturers | Intel, AMD, Qualcomm, etc. | NVIDIA, AMD | |
Availability | Found in almost all computing devices. | High-end PCs, gaming systems, data centers | Available in Google Cloud Data Centers |
Parallelism | Limited multitasking with hyper-threading. | Designed for massive parallel computation | Handles large-scale batch processing |
Benefits and Challenges
CPUs have numerous benefits, such as versatility, high-speed processing, and wide accessibility, making them fundamental to nearly every computing task. Yet, some challenges arise with their use. Let’s go over the benefits and challenges of CPUs.
Benefits
- Versatility and Flexibility: CPUs are general-purpose processors capable of handling various tasks, from basic arithmetic operations to complex computations. This adaptability makes them suitable for multiple applications, including running operating systems, managing input/output operations, and executing diverse software applications.
- Ease of Use: CPUs are compatible with most software and systems. Users don’t need specialized knowledge to get the most out of them. The broad support for CPUs across operating systems and applications enhances their accessibility.
- Cost-Effective: Compared to specialized processors like GPUs or TPUs, CPUs are generally more affordable and can be used in various devices, making them accessible to many users.
- High Single-Thread Performance: CPUs are designed to handle tasks that require fast, sequential processing. They excel at executing single-threaded operations, making them ideal for tasks like running operating systems, compiling code, and certain types of gaming or simulations. This high single-thread performance is an important advantage for applications that cannot be easily parallelized.
Challenges
- Energy Consumption: CPUs, especially those with multiple cores, can consume significant power, leading to increased energy costs and heat generation. This can necessitate advanced cooling solutions and impact computing systems' overall energy efficiency.
- Limited Parallel Processing: CPUs can handle multiple tasks but are not as efficient as GPUs or TPUs in processing highly parallel workloads, such as those found in deep learning and complex simulations. This limitation can result in longer processing times for tasks that benefit from parallelism.
- Scalability Issues: As workloads become more complex and data-intensive, scaling CPU performance can be challenging. Adding more cores may not always lead to linear performance improvements due to factors like memory bandwidth limitations and software scalability issues.
Use Cases
CPUs are the core of virtually all computing devices. Smartphones and supercomputers power everything by executing instructions and managing data. Here are a few use cases of CPUs to highlight their versatility and importance.
Personal Computing: CPUs handle tasks like browsing, office applications, and gaming. They balance speed and power to ensure efficient multitasking, enabling smooth user experiences in everyday computing.
Gaming: High-performance CPUs process game data in real time, managing complex game mechanics, assets, and rendering to deliver smooth gameplay and graphics.
Mobile Devices: CPUs power apps, browsing, and connectivity in mobile devices. They optimize performance for portability and battery efficiency while handling multitasking and sensor data.
Cloud Computing: Multi-core CPUs in servers support cloud services by managing virtual environments and large data workloads, ensuring high scalability and performance for web applications, storage, and databases.
IoT Devices: In IoT devices, CPUs process data from sensors and manage network connectivity for applications like smart home automation, security, and monitoring, enabling real-time data analysis and response.
AI and Machine Learning: CPUs are crucial for processing large datasets in AI tasks like image recognition and natural language processing. They perform the necessary computations for training and running machine learning models.
FAQs
- What does a CPU do in a computer?
The CPU, or Central Processing Unit, is the brain of a computer. It performs calculations, executes instructions, and manages the data flow between different components. This enables the system to run applications and perform tasks.
- What are the key components of a CPU?
A CPU consists of several key components. These include the ALU (Arithmetic Logic Unit) for mathematical and logical operations, the Control Unit (CU) to manage instructions, the Registers for temporary data storage, and the Cache for fast access to frequently used data.
- What affects CPU speed?
Several factors, including the clock speed, the number of cores, and the architecture, influence CPU speed. The efficiency of the CPU’s components also plays a role. Higher clock speeds and more cores generally improve performance, but thermal and power limitations can affect speed.
- What is the difference between a single-core and a multi-core CPU?
A single-core CPU has one processing unit that handles all tasks sequentially. On the other hand, a multi-core CPU has multiple processing units, allowing it to handle several tasks simultaneously. This improves performance for multi-threaded tasks.
- How do CPUs handle multitasking?
CPUs handle multitasking through multithreading and the use of multiple cores. Multithreading allows a CPU to process various tasks within a single core, while multi-core processors divide tasks across different cores. This makes multitasking more efficient.
